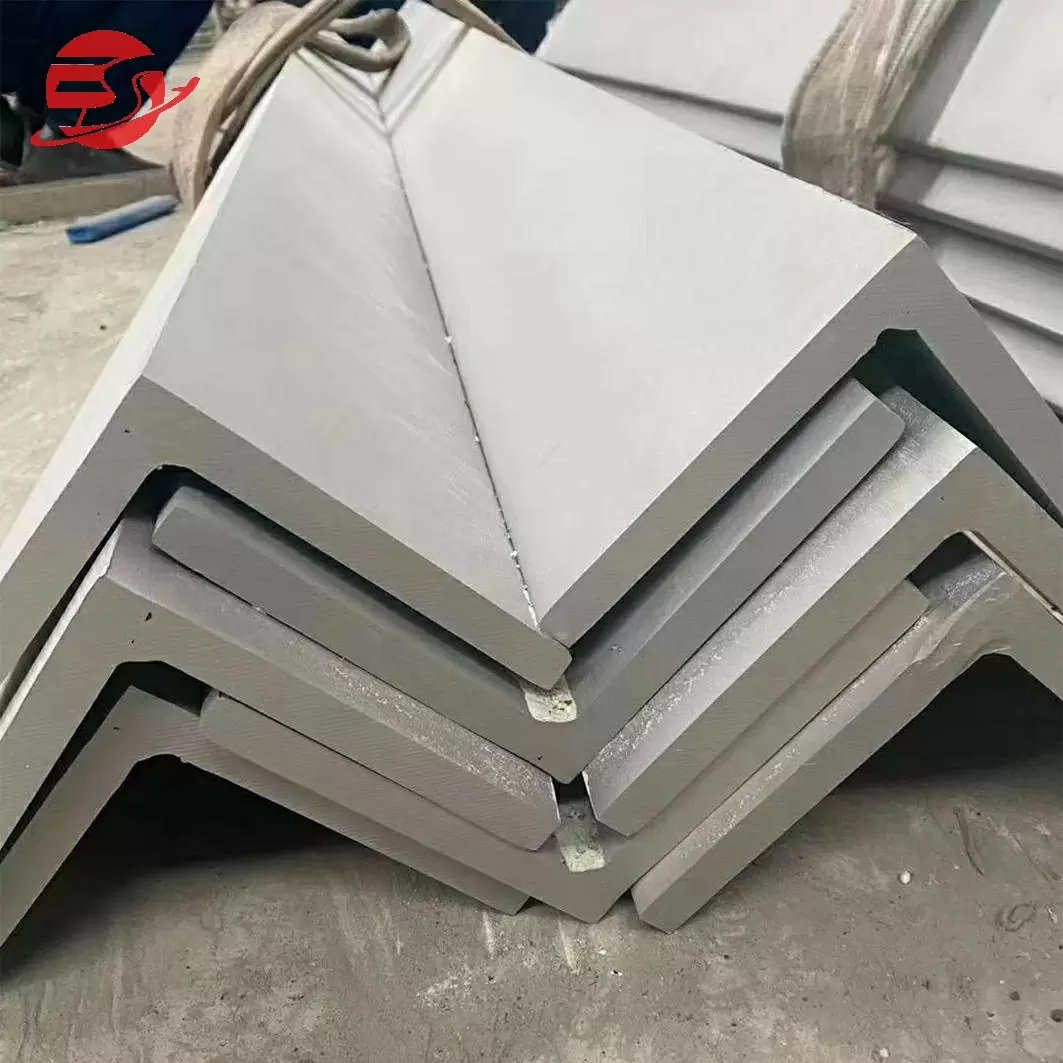

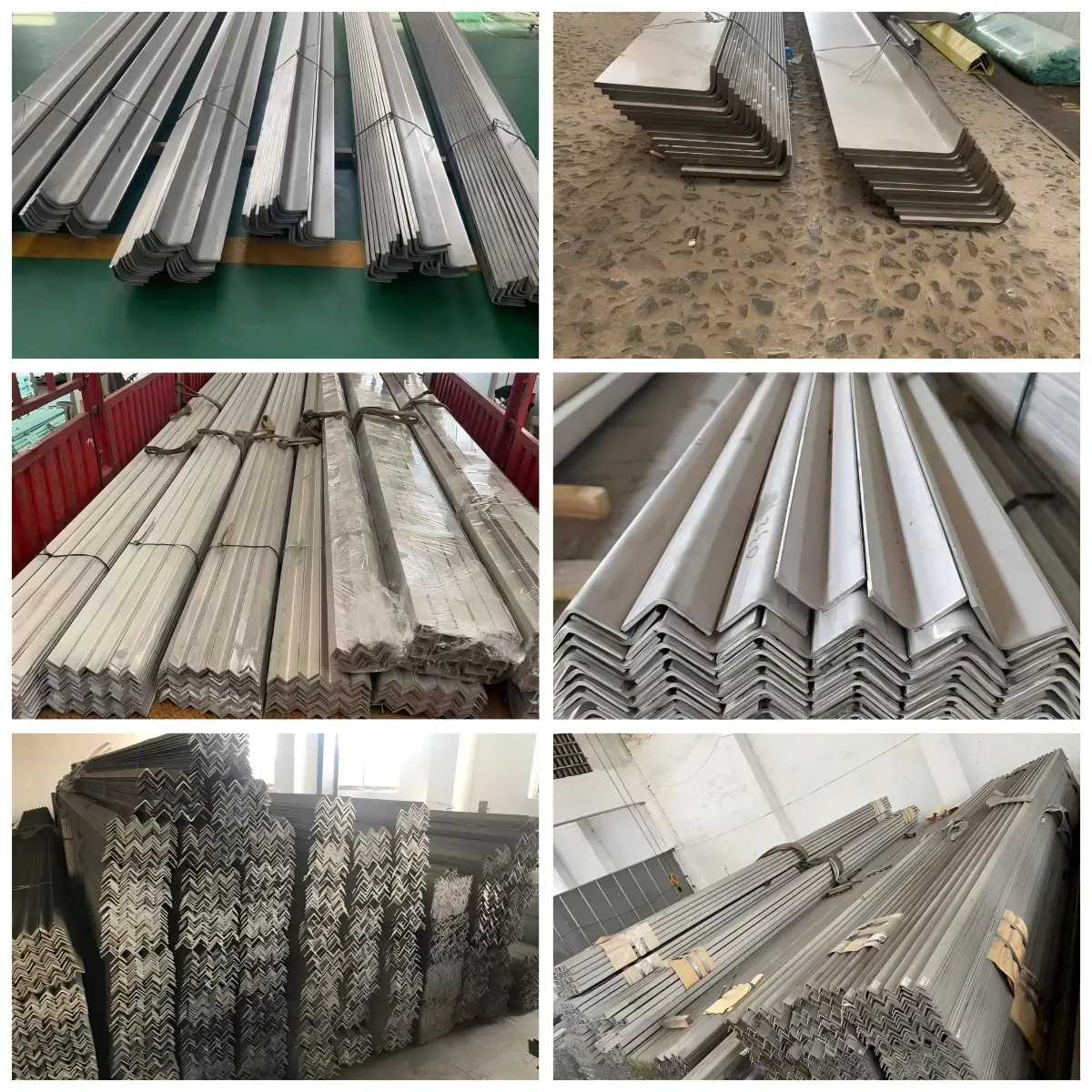

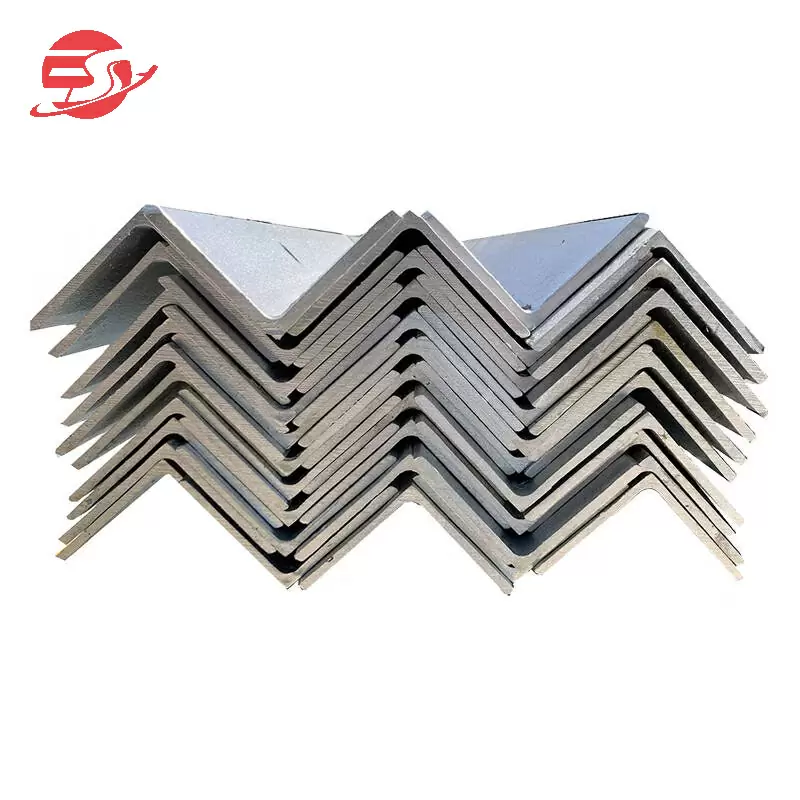

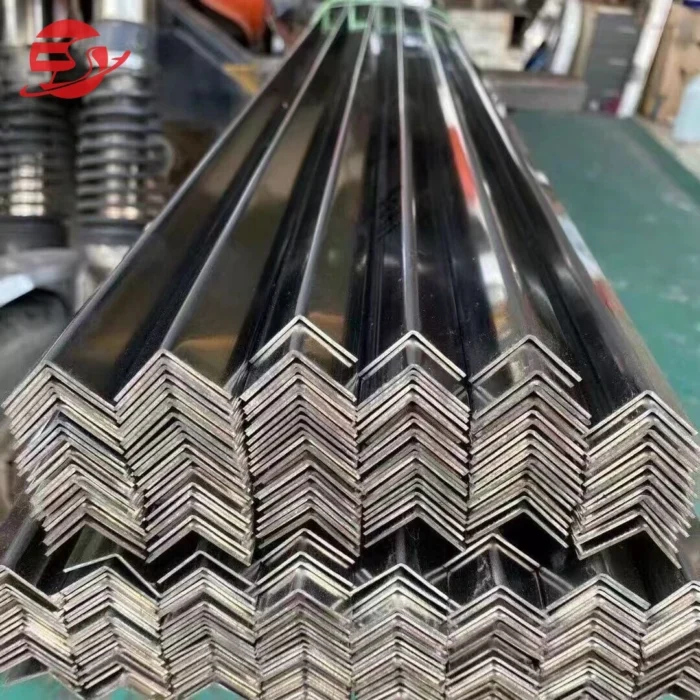

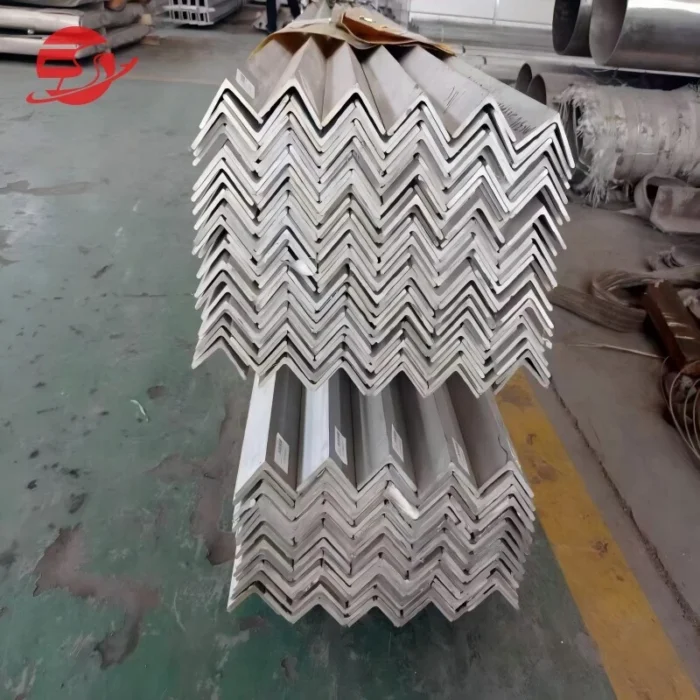

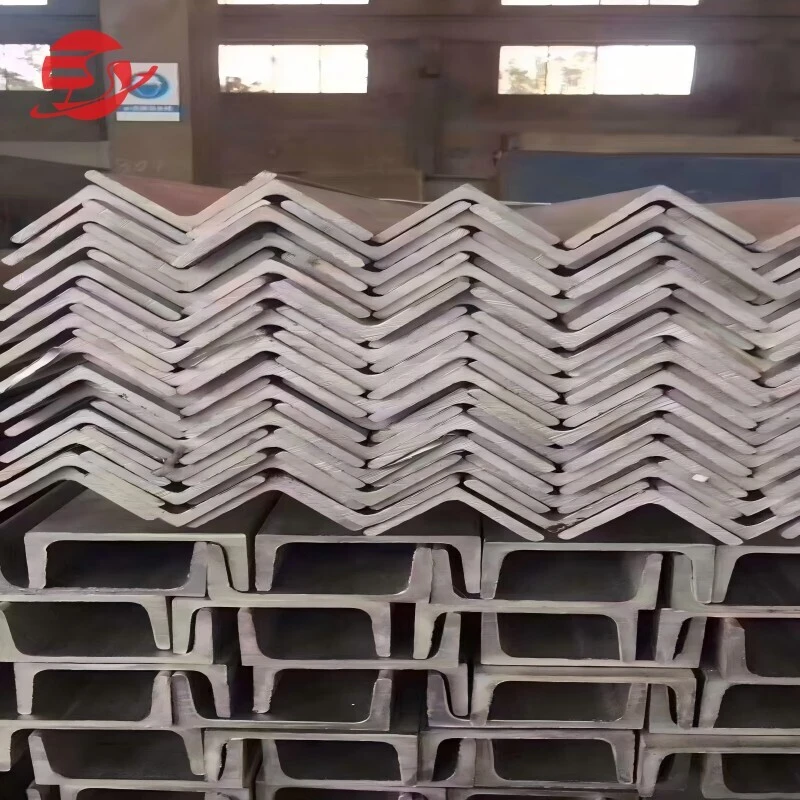

Stainless Steel Angle Bar
It is mainly divided into two types: equilateral angle steel and unequal angle steel. Among them, unequal angle steel can be divided into two types: unequal sides and equal thickness and unequal sides and unequal thickness. The delivery length of angle steel is divided into two types: fixed length and double length. The selection range of fixed length for domestic angle steel has four ranges: 3~9m, 4~12m, 4~19m, and 6-19m according to the different specifications. The length of angle steel produced in Japan ranges from 6m to 15m.
Stainless steel angle steel can be composed of various stress components according to different needs of the structure, and can also be used as a connector between components. Widely used in various building structures and engineering structures, such as beams, bridges[/url], transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves, etc.
Product Specifications
| Product Name: | Angle steel | ||
|---|---|---|---|
| Place of Origin: | Shandong, China | Standard: | ASTM, AiSi, DIN, EN, GB, JIS |
| Application: | Industry/Chemical Equipment/Kitchen | Alloy Or Not: | Non-Alloy |
| Thickness: | 0.5mm-10mm | Technical Test: | UT Test, Bending Test, Charpy Test |
| Tolerance: | ±1% | Processing Service: | Welding, Decoiling |
| Grade: | SS400-SS540 Series | ||
| Delivery Time: | 8-14Days | Technique: | Hot Rolled Angle Bar |
| Price Term: | CIF CFR FOB EX-WORK | Type: | Equal and Unequal |
| Finish: | Brush Polish | Size: | Customized Size |
| Payment Term: | 30%T/T Advance + 70% Balance | Sample: | Free-sample |
| Keyword: | Galvanized equal steel angle bar | Brand Name: | Baogang |
Theoretical Weight Table
| Size (MM) | theoretical weight (KG/M) | Size (MM) | theoretical weight (KG/M) | Size (MM) | theoretical weight (KG/M) | Size (MM) | theoretical weight (KG/M) | Size (MM) | theoretical weight (KG/M) |
| 20*3 | 0.889 | 63*8 | 7.469 | 90*10 | 13.476 | 130*10 | 19.800 | 180*18 | 48.634 |
| 20*4 | 1.145 | 63*10 | 9.151 | 90*12 | 15.940 | 130*12 | 23.600 | 200*14 | 42.894 |
| 25*2 | 0.763 | 65*5 | 5.000 | 100*6 | 9.366 | 130*13 | 25.400 | 200*15 | 45.300 |
| 25*4 | 1.459 | 65*6 | 5.910 | 100*7 | 10.830 | 130*14 | 27.200 | 200*16 | 48.680 |
| 30*2 | 0.922 | 65*8 | 7.660 | 100*8 | 12.276 | 130*16 | 30.900 | 200*18 | 54.401 |
| 30*3 | 1.373 | 70*5 | 5.397 | 100*10 | 15.120 | 140*10 | 21.488 | 200*20 | 60.056 |
| 30*4 | 1.786 | 70*6 | 6.406 | 100*12 | 17.898 | 140*12 | 25.522 | 200*24 | 71.168 |
| 40*3 | 1.852 | 70*7 | 7.398 | 100*16 | 23.257 | 140*14 | 29.490 | 200*25 | 73.600 |
| 40*4 | 2.422 | 70*8 | 8.373 | 110*7 | 11.928 | 140*16 | 33.393 | 220*16 | 53.901 |
| 40*5 | 2.976 | 75*5 | 5.818 | 110*8 | 13.532 | 150*9 | 20.700 | 220*18 | 60.250 |
| 45*4 | 2.736 | 75*6 | 6.905 | 110*10 | 16.690 | 150*10 | 23.000 | 220*20 | 66.533 |
| 45*5 | 3.369 | 75*7 | 7.976 | 110*12 | 19.782 | 150*12 | 27.300 | 220*22 | 72.751 |
| 50*3 | 2.332 | 75*8 | 9.030 | 110*14 | 22.809 | 150*14 | 31.600 | 220*24 | 78.902 |
| 50*4 | 3.059 | 75*10 | 11.089 | 120*8 | 14.880 | 150*15 | 33.800 | 220*26 | 84.987 |
| 50*5 | 3.770 | 75*9 | 10.060 | 120*10 | 18.370 | 160*10 | 24.729 | 250*18 | 68.956 |
| 50*6 | 4.465 | 75*10 | 11.089 | 120*12 | 21.666 | 160*12 | 29.391 | 250*20 | 76.180 |
| 56*4 | 3.446 | 80*5 | 6.211 | 120*10 | 18.370 | 160*14 | 33.987 | 250*24 | 90.433 |
| 56*5 | 4.251 | 80*6 | 7.376 | 120*12 | 21.666 | 160*16 | 38.581 | 250*25 | 93.770 |
| 60*5 | 4.520 | 80*7 | 8.525 | 125*8 | 15.504 | 175*12 | 31.800 | 250*26 | 97.461 |
| 60*6 | 5.420 | 80*8 | 9.658 | 125*10 | 19.133 | 175*15 | 39.400 | 250*28 | 104.422 |
| 63*4 | 3.907 | 80*10 | 11.874 | 125*12 | 22.696 | 180*12 | 33.159 | 250*30 | 111.318 |
| 63*5 | 4.822 | 90*6 | 8.350 | 125*14 | 26.193 | 180*14 | 38.382 | 250*32 | 118.149 |
| 63*6 | 5.721 | 90*7 | 9.656 | 125*16 | 29.600 | 180*16 | 43.542 | 250*35 | 128.271 |
| 63*8 | 7.469 | 90*8 | 10.946 | 125*18 | 33.100 | 180*18 | 48.634 | 250*35 | 128.27 |
