JIS SUS304L Stainless Steel Plate
The stainless steel plate has a smooth surface, high plasticity, toughness and mechanical strength, and is resistant to corrosion by acids, alkaline gases, solutions and other media. It is an alloy steel that is not easy to rust,
Product Details
| Product Name | Stainless Steel Plate |
|---|---|
| Technology | Cold Rolled/Hot Rolled |
| Thickness | 0.3mm-3mm, >3mm |
| Width | 60mm-1500mm |
| Length | As required |
| Surface | BA/2B/NO.4/8K/HL |
| Delivery Time | Within 7-15 business days |
| Grade | C | Si | Mn | P | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.60 | 16.0-18.0 | - |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation(%) | Hardness (HRB) |
|---|---|---|---|---|
| 201 | ≥655 | ≥310 | ≥40 | ≤100 |
| 202 | ≥620 | ≥260 | ≥40 | ≤100 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 |
| 304L | ≥485 | ≥170 | ≥40 | ≤88 |
| 316 | ≥515 | ≥205 | ≥40 | ≤95 |
| 316L | ≥485 | ≥170 | ≥40 | ≤95 |
| 321 | ≥515 | ≥205 | ≥40 | ≤95 |
| 409 | ≥380 | ≥205 | ≥20 | ≤80 |
| 409L | ≥350 | ≥185 | ≥22 | ≤80 |
| 430 | ≥450 | ≥205 | ≥22 | ≤80 |
Stainless steel standard steel grade comparison table and density table
| China | Japan | USA | South Korea | European Union | Australia | Taiwan, China | Densityt/m3 |
|---|---|---|---|---|---|---|---|
| GB/T20878 | JIS | ASTM | KS | BSEN | AS | CNS | - |
| 12Cr13 | SUS403 | 403 | STS403 | — | 403 | 403 | 7.75 |
| 20Cr13 | SUS420J1 | 420 | STS420J1 | 1.4021 | 420 | 420J1 | 7.75 |
| 30Cr13 | SUS420J2 | — | STS420J2 | 1.4028 | 420J2 | 420J2 | 7.75 |
| 10Cr17 | SUS430 | 430 | STS430 | 1.4016 | 430 | 430 | 7.70 |
| 68Cr17 | SUS440A | 440A | STS440A | — | 440A | 440A | 7.70 |
| 06Cr19Ni10 | SUS304 | 304 | STS304 | 1.4301 | 304 | 304 | 7.93 |
| 022Cr19Ni10 | SUS304L | 304L | STS304L | 1.4306 | 304L | 304L | 7.93 |
| 06Cr17Ni12Mo2 | SUS316 | 316 | STS316 | 1.4401 | 316 | 316 | 7.98 |
| 022Cr17Ni12Mo2 | SUS316L | 316L | STS316L | 1.4404 | 316L | 316L | 7.98 |
| 06Cr18Ni11Ti | SUS321 | 321 | STS321 | 1.4541 | 321 | 321 | 7.93 |
| 06Cr18Ni11Nb | SUS347 | 347 | STS347 | 1.455 | 347 | 347 | 7.98 |

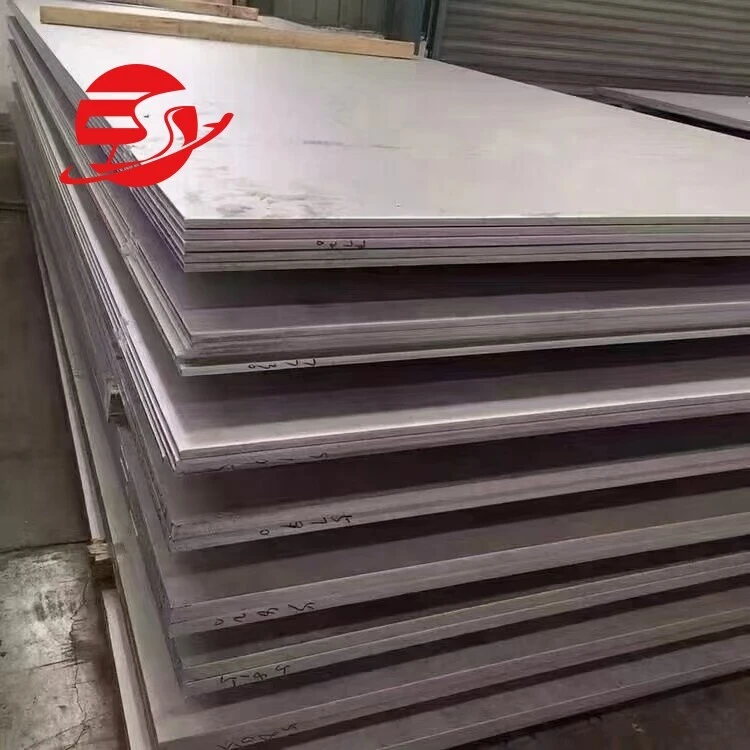

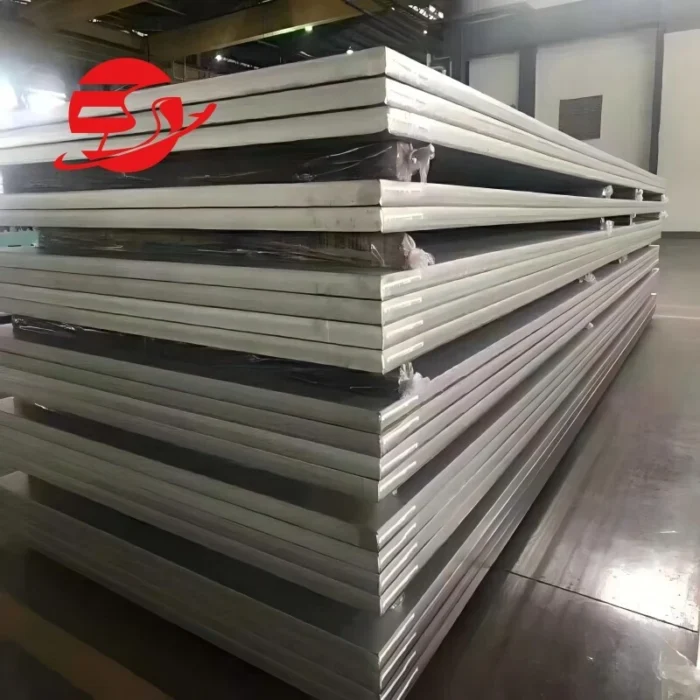

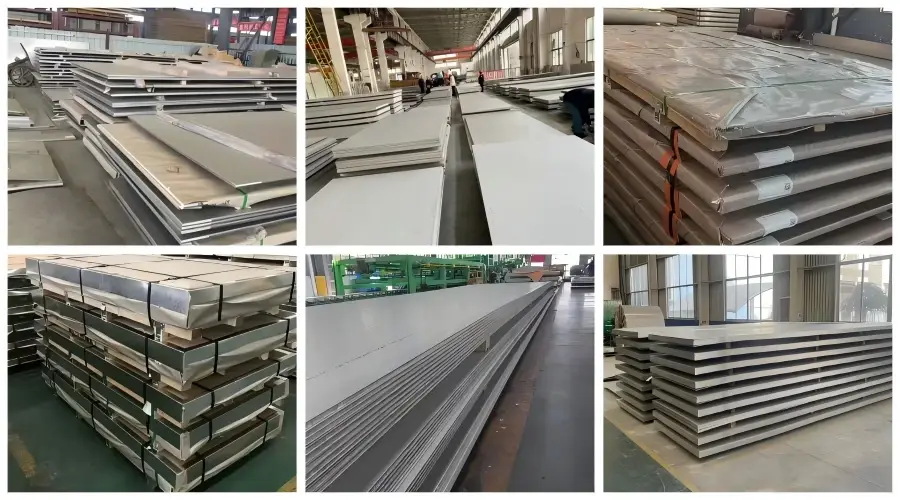

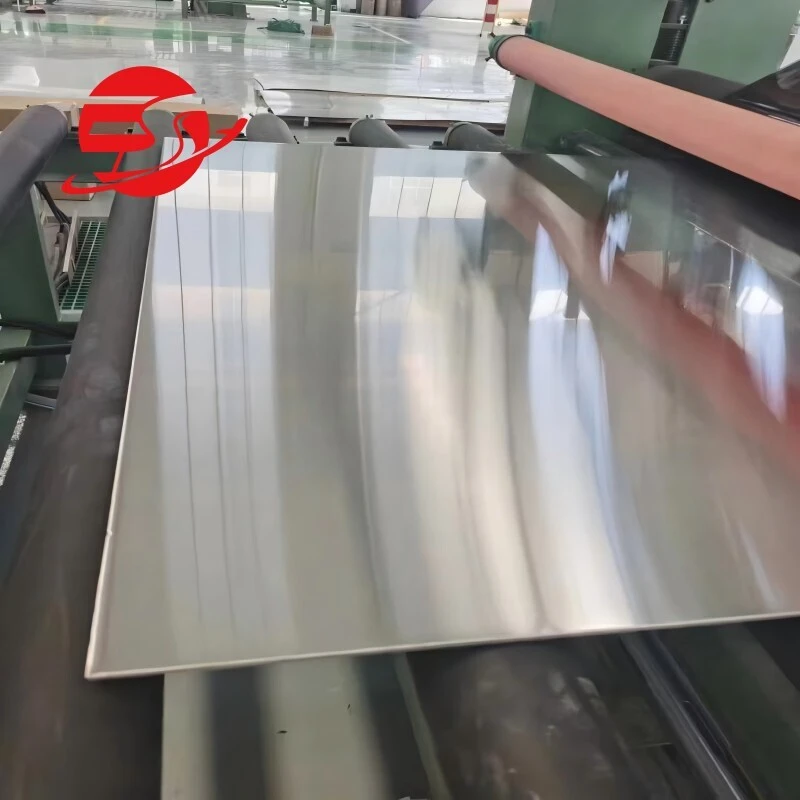

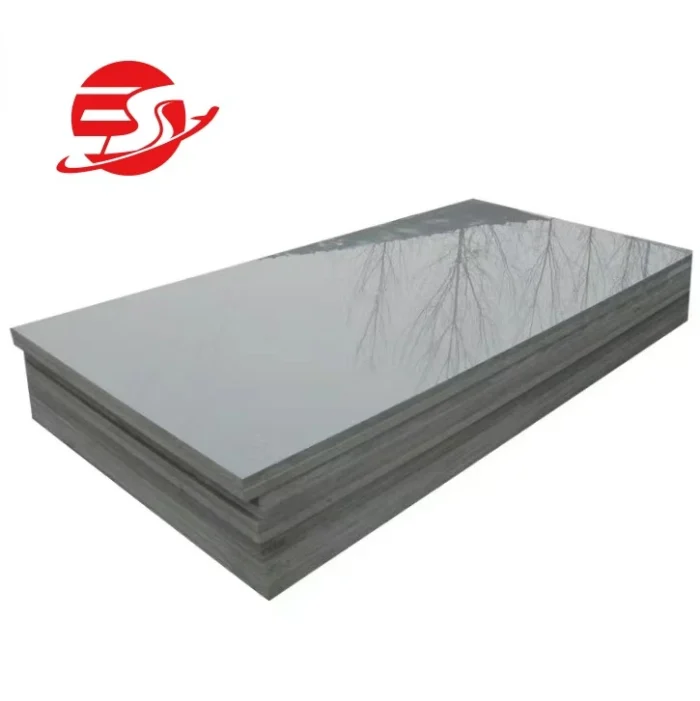

Product Show
