Stainless Steel Rod
Product Details
Stainless steel rods have broad application prospects and are widely used in hardware kitchen utensils, shipbuilding, petrochemical, machinery, medicine, food, electric power, energy, construction and decoration, nuclear power, aerospace, military and other industries!. Equipment used in seawater, chemical, dyestuff, papermaking, oxalic acid, fertilizer and other production equipment; food industry, facilities in coastal areas, ropes, CD rods, bolts, nuts.
| Product Name | Stainless Steel Bar Rod | |
|---|---|---|
| Material | 301, 304, 304L, 309S, 321, 316, 316L, 317, 317L, 310S, 201,202,321, 329, 347, 347H, 410, 420, 430, S20100, S20200, S30100, S30400, S30403, S30908, S31008, S31600, S31635, etc. | |
| Specifications | Round bar | Diameter: 1mm~500mm |
| Square bar | Size: 1mm*1mm~800mm*800mm | |
| Hexagonal bar | Size: 2mm~100mm | |
| Length | 2m, 5.8m, 6m, or as required | |
| Surface | Black, peeled, polishing, bright, sand blast, hair line, etc. | |
| Standard | ASTM A479, ASTM A276, ASTM A484, ASTM A582, ASME SA276, ASME SA484, GB/T1220, GB4226, etc. | |
| MOQ | 1 ton, We can accept sample order | |
| Shipment Time | Within 7-15 workdays after receiving deposit or L/C | |
| Export Packing | Standard seaworthy export packing or according to the customers' request | |
| Capacity | 25000 Ton/Tons per Month | |
Stainless steel standard steel grade comparison table and density table
| Grade | Composition (nominal wt%) | Elongation % | Hardness |
|---|---|---|---|
| 301 Annealed 1/4H 1/2H FH | C .15, Mn 2.0, P .045, S 0.3, Si .75, Cr 16-18, Ni 6-8, N .1 | 40 | 95 Rb |
| 302 | C 0.15, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 8-10, N .1 | 40 | 92 Rb |
| 303 | C 0.15, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 8-10, N .1 | 30-50 | 92 Rb |
| 304 | C .08, Mn 2.0, P .045, S .03, Si .75, Cr 18-20, Ni 8-10.5, N .10 | 40 | 92 Rb |
| 304L | C .03, Mn 2, P .045, S .03, Si .75, Cr 18-20, Ni 8-12, N .1 | 40 | 92 Rb |
| 305 | C .12, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 10.5-13 | 40 | 88 Rb |
| 309/309S |
309: C .2, Mn 2.0, P .045, S .03, Si .75, Cr 22-24, Ni 12-15, Fe bal 309S: C .08, Mn 2.0, P .045, S .03, Si .75, Cr 22-24, Ni 12-15, Fe bal |
49 / 44.6 | - |
| 310 / 310S |
310: C .25, Mn 2, P .045, S .03, Si 1.5, Cr 24-26, Ni 19-22, Fe bal 310S: C 0.08, Mn 2, P 0.045, S 0.03, Si 1.5, Cr 24-26, Ni 19-22, Fe bal |
45 / 42 / 6 | - |
| 316 | C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N .1, Fe bal | 40 | 95 Rb |
| 316L | C .03, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N 0.1, Fe bal | 54 | 95 Rb |
| 316Ti | C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P 0.045, S 0.03, N 0.1, Ti 0.15-0.70, Fe bal | 248 | 76 Rb |
| 317 | C .08, Mn 2.0, Si .75, Cr 18-20, Ni 11-15, Mo 3-4, P .045, S .03, N .10, Fe bal | 35 | 95 Rb |
| 321 | C .09, Mn 2.0, P .045, S .03, Si .75, Cr 17-18, Ni 9-12, Ti .7, N .1, Fe bal | 40 | 95 Rb |
| 334 | C 0.03, Mn 1.0, P .02, S .015, Si .75, Cr 19-19.5, Ni 19-20, Ti .4, Al .4, Cu .2, Fe bal | 40 | 82 Rb |
| 347 | C .08, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 9-13, Cb+Ta 1.0, Fe bal | 40 | 95 Rb |
| 348 | C .08, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 9-13, Cb+Ta 1.0, Ta .10, Co .2, Fe bal | 40 | 92 Rb |
| 410 | C .15, Mn 1.0, Si 1.0, Cr 11.5-13.5, Ni 0.5, S .03, P .04 | 34 | 38-45 Rc |
| 416 | C 0.15, Mn 1.25, Si 1.0, Cr 12-14, P 0.06, S 0.15, Mo 0.60, Fe bal | 15-30 | - |
| 420 | C .15-.40, Mn 1.0, Si 1.0, Cr 12-14, Ni 0.5, S .03, P .04 | 15-30 | 53-57 Rc |
| 440A | C .60-.75, Mn 1.0, Si 1.0, Cr 16-18, Mo .75, Ni .50, S .03, P .04 | 20 | 57-60 Rc |
| 440C | Cr 16.5, C 1.0, Si 1.0 | - | 58 Rc |
| 13-8 Mo | Cr 13, Ni 8, Mo 2, Al, low C, Fe bal | 18 | 33 Rc |
| 15-5PH | Cr 15, Ni 5, Cu 3, Cb, Fe bal | 10 | 33 Rc |
| 15-7Mo | Cr 15, Ni 7, Mo 2, Al 1, Fe bal | 30 | 88 Rb |
| 17-4PH | Cr 17, Ni 4, Cu 3, Cb, Fe bal | 8 | 33 Rc |
| China | Japan | USA | South Korea | European Union | Australia | Taiwan, China | Density t/m³ |
|---|---|---|---|---|---|---|---|
| GB/T20878 | JIS | ASTM | KS | BSEN | AS | CNS | |
| 12Cr13 | SUS403 | 403 | STS403 | — | 403 | 403 | 7.75 |
| 20Cr13 | SUS420J1 | 420 | STS420J1 | 1.4021 | 420 | 420J1 | 7.75 |
| 30Cr13 | SUS420J2 | — | STS420J2 | 1.4028 | 420J2 | 420J2 | 7.75 |
| 10Cr17 | SUS430 | 430 | STS430 | 1.4016 | 430 | 430 | 7.70 |
| 68Cr17 | SUS440A | 440A | STS440A | — | 440A | 440A | 7.70 |
| 06Cr19Ni10 | SUS304 | 304 | STS304 | 1.4301 | 304 | 304 | 7.93 |
| 022Cr19Ni10 | SUS304L | 304L | STS304L | 1.4306 | 304L | 304L | 7.93 |
| 06Cr17Ni12Mo2 | SUS316 | 316 | STS316 | 1.4401 | 316 | 316 | 7.98 |
| 022Cr17Ni12Mo2 | SUS316L | 316L | STS316L | 1.4404 | 316L | 316L | 7.98 |
| 06Cr18Ni11Ti | SUS321 | 321 | STS321 | 1.4541 | 321 | 321 | 7.93 |
| 06Cr18Ni11Nb | SUS347 | 347 | STS347 | 1.455 | 347 | 347 | 7.98 |

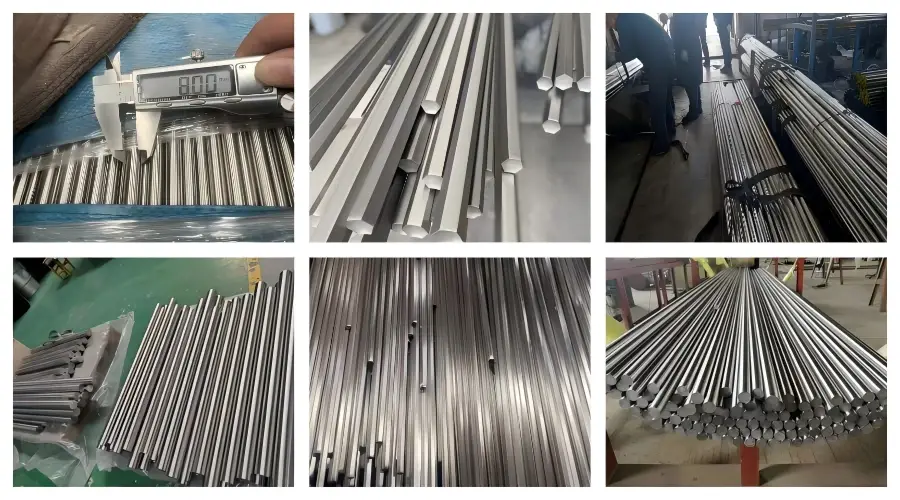

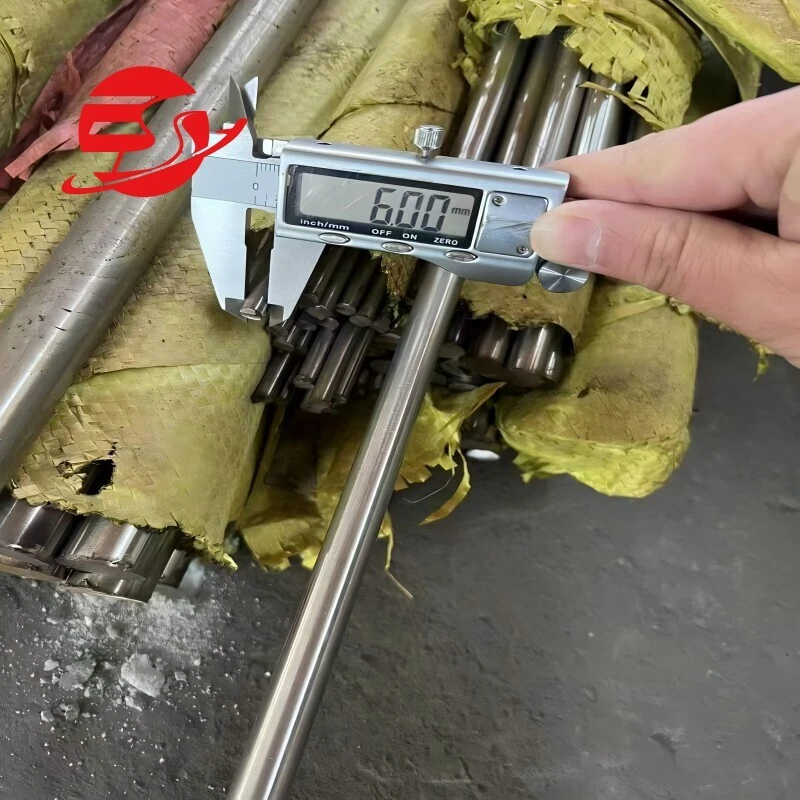

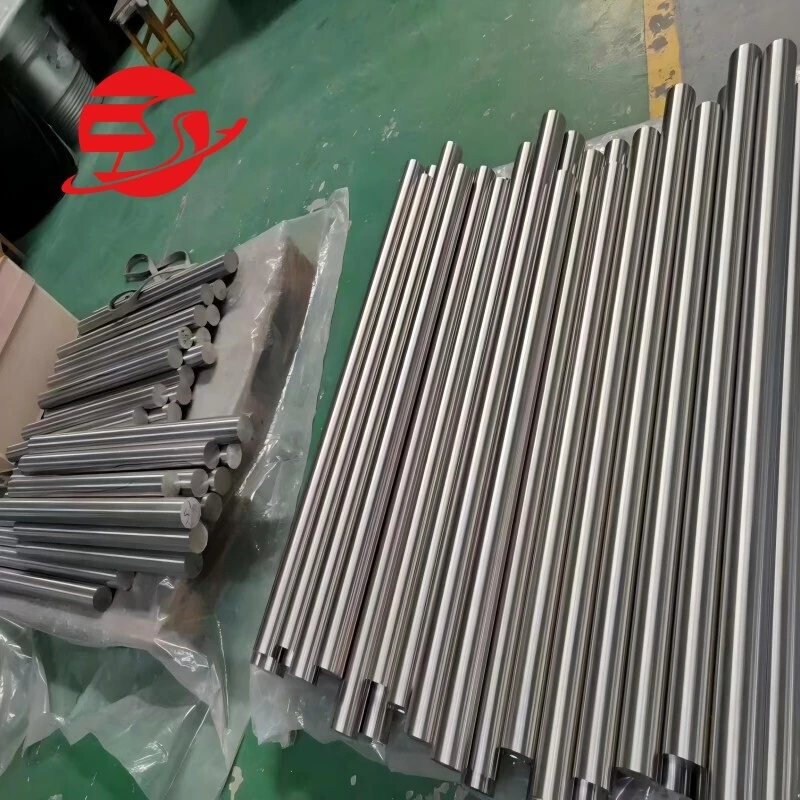

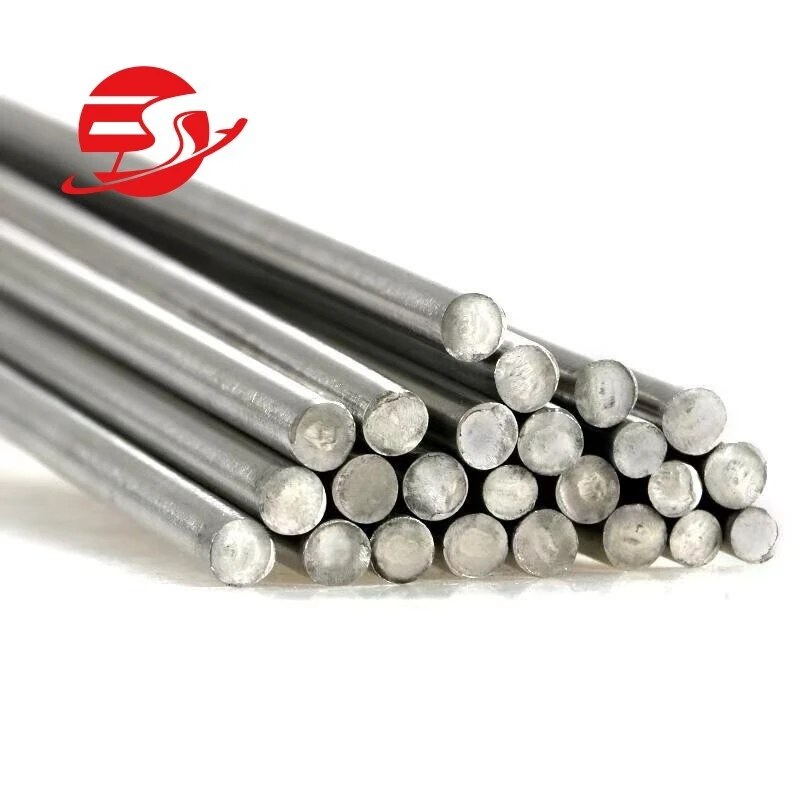

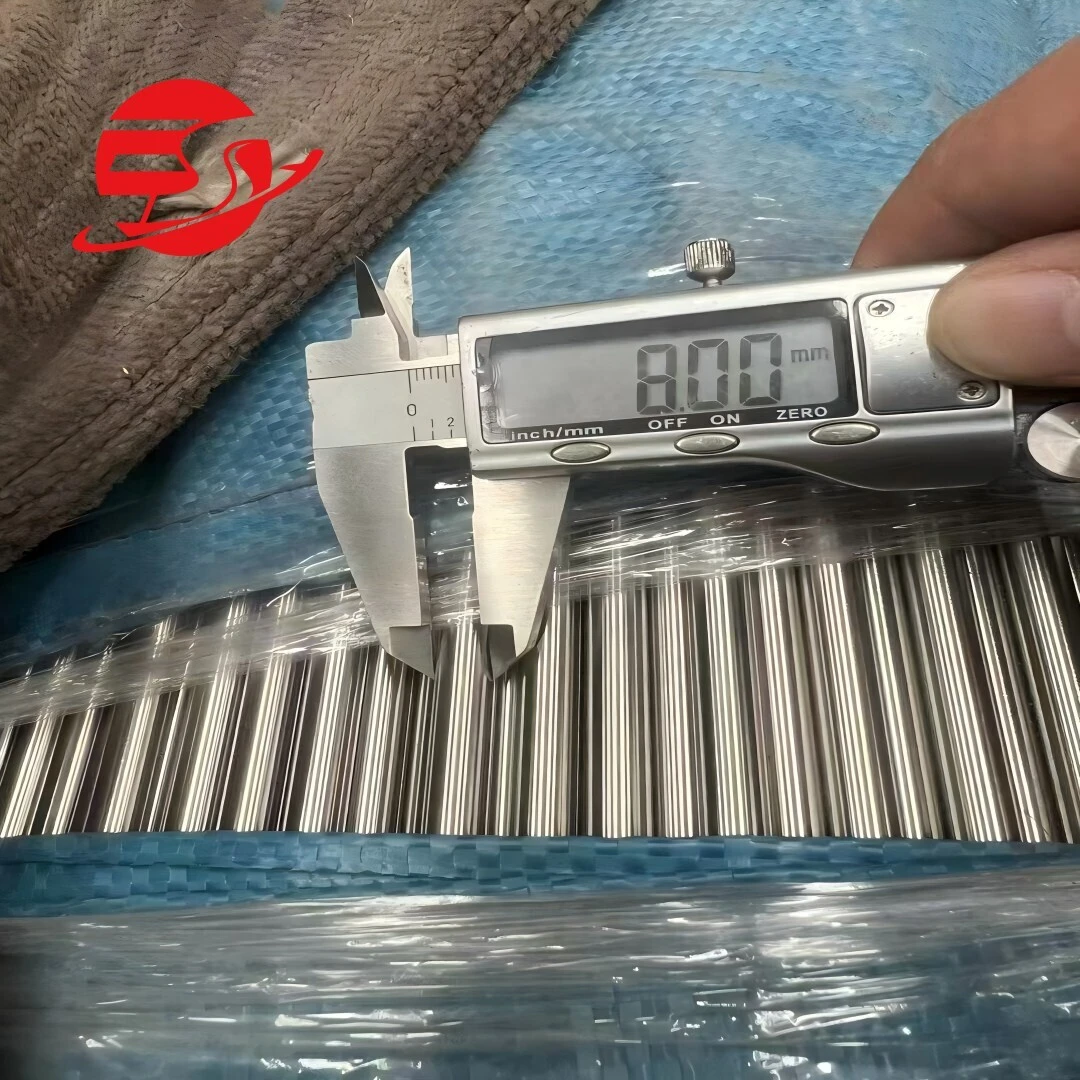

Product Show
